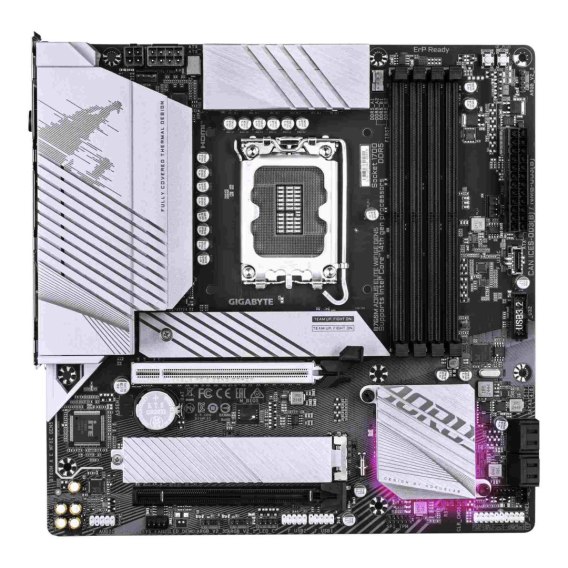

Gigabyte Płyta Gigabyte B760M AORUS ELITE WIFI6E GEN5 /B760/DDR5/SATA3/M.2/USB3.2/PCIe5.0/s.1700/mATX


Symbol:
B760M A E WF6E GEN5
985,00 zł Brutto
0,00 zł Brutto
Wysyłka w ciągu | 24 godziny |
Dostępność |
Średnia dostępność
|
Zamówienie telefoniczne: 517694788
Zostaw telefon |
Gniazdo procesora: Socket 1700
Obsługiwane typy procesorów: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)
Format płyty: Micro-ATX
BIOS: 1 x 256 Mbit flash AMI UEFI BIOS
Chipset płyty głównej: Intel® B760
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-5600, DDR5-5200, DDR5-4800, DDR5-4400
Uwagi do pamięci RAM: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
Zintegrowany kontroler SATA: Chipset: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 2x M.2
Uwagi do kontrolera SATA: CPU:, - 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset:, - 1 x M.2 connector (Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support) (M2P_SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Wbudowana karta graficzna: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Gniazda karty graficznej: HDMI, DisplayPort
Uwagi do karty graficznej: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3., Support for native HDMI 2.1 TMDS compatible ports., - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3, (Graphics specifications may vary depending on CPU support.)
Zintegrowana karta dźwiękowa: Realtek® HD Audio CODEC
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej: 2/4/5.1/7.1-channel
Złącza PCI Express x16: 2
Uwagi do złącz PCI: CPU:, - 1 x PCI Express x16 slot, supporting PCIe5.0 and running at x16(PCIEX16), The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only, one graphics card is to be installed, be sure to install it in the PCIEX16, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 8
Porty USB na panelu tylnym: 4x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + USB 3.2 Type-C
Gniazda USB na płycie głównej: 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 Type-C
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax
Port Bluetooth: Bluetooth V5.3
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU fan header, 3x system fan headers, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Trusted Platform Module header, Q-Flash Plus button, Reset button, Reset jumper, Clear CMOS jumper
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Wymiary [S x W] (mm): 244 x 244
Opakowanie: BOX
Informacje dodatkowe: Norton® Internet Security (OEM version), LAN bandwidth management software
Obsługiwane typy procesorów: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)
Format płyty: Micro-ATX
BIOS: 1 x 256 Mbit flash AMI UEFI BIOS
Chipset płyty głównej: Intel® B760
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-5600, DDR5-5200, DDR5-4800, DDR5-4400
Uwagi do pamięci RAM: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
Zintegrowany kontroler SATA: Chipset: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 2x M.2
Uwagi do kontrolera SATA: CPU:, - 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset:, - 1 x M.2 connector (Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support) (M2P_SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Wbudowana karta graficzna: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Gniazda karty graficznej: HDMI, DisplayPort
Uwagi do karty graficznej: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3., Support for native HDMI 2.1 TMDS compatible ports., - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3, (Graphics specifications may vary depending on CPU support.)
Zintegrowana karta dźwiękowa: Realtek® HD Audio CODEC
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej: 2/4/5.1/7.1-channel
Złącza PCI Express x16: 2
Uwagi do złącz PCI: CPU:, - 1 x PCI Express x16 slot, supporting PCIe5.0 and running at x16(PCIEX16), The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only, one graphics card is to be installed, be sure to install it in the PCIEX16, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 8
Porty USB na panelu tylnym: 4x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + USB 3.2 Type-C
Gniazda USB na płycie głównej: 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 Type-C
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax
Port Bluetooth: Bluetooth V5.3
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU fan header, 3x system fan headers, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Trusted Platform Module header, Q-Flash Plus button, Reset button, Reset jumper, Clear CMOS jumper
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Wymiary [S x W] (mm): 244 x 244
Opakowanie: BOX
Informacje dodatkowe: Norton® Internet Security (OEM version), LAN bandwidth management software
Opakowanie:
BOX
Wymiary [S x W] (mm):
244 x 244
Maksymalna wielkość pamięci:
256 GB
Port LAN:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax
Port Bluetooth:
Bluetooth V5.3
Chipset płyty głównej:
Intel® B760
Wbudowana karta graficzna:
Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Standard pamięci:
DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600
Gniazdo procesora:
Socket 1700
Obsługiwane typy procesorów:
Intel Celeron™ (Socket 1700), Intel Core i3 12th Generation, Intel Core i3 13th Generation, Intel Core i5 12th Generation, Intel Core i5 13th Generation, Intel Core i7 12th Generation, Intel Core i7 13th Generation, Intel Core i9 12th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700)
Format płyty:
Micro-ATX
BIOS:
1 x 256 Mbit flash AMI UEFI BIOS
Ilość złącz pamięci DDR5:
4
Tryb pracy pamięci RAM:
Dual Channel
Zintegrowany kontroler SATA:
Chipset: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 2x M.2
Gniazda karty graficznej:
DisplayPort, HDMI
Zintegrowana karta dźwiękowa:
Realtek® HD Audio CODEC
Gniazda karty dźwiękowej:
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x16:
2
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
8
Porty USB na panelu tylnym:
4x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + USB 3.2 Type-C
Gniazda USB na płycie głównej:
4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 Type-C
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Uwagi do pamięci RAM:
(operate in non-ECC mode), Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Uwagi do karty graficznej:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, (Graphics specifications may vary depending on CPU support.), Support for DisplayPort 1.2 version and HDCP 2.3, Support for HDMI 2.1 version and HDCP 2.3., Support for native HDMI 2.1 TMDS compatible ports.
Uwagi do kontrolera SATA:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280, - 1 x M.2 connector (Socket 3, M key, type 2280, - 4 x SATA 6Gb/s connectors, Chipset:, CPU:, PCIe 4.0 x4/x2 SSD support) (M2A_CPU), PCIe 4.0 x4/x2 SSD support) (M2P_SB), RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Uwagi do karty dźwiękowej:
2/4/5.1/7.1-channel
Uwagi do złącz PCI:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PCIEX16, Chipset:, CPU:, one graphics card is to be installed, be sure to install it in the PCIEX16, The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only
Port PS/2:
Brak
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Inne porty i gniazda:
3x Addressable RGB Gen2 LED strip headers, 3x system fan headers, Clear CMOS jumper, CPU fan header, Front panel header, Q-Flash Plus button, Reset button, Reset jumper, RGB LED strip header, Trusted Platform Module header
